-11%
Digital Clamp Meters

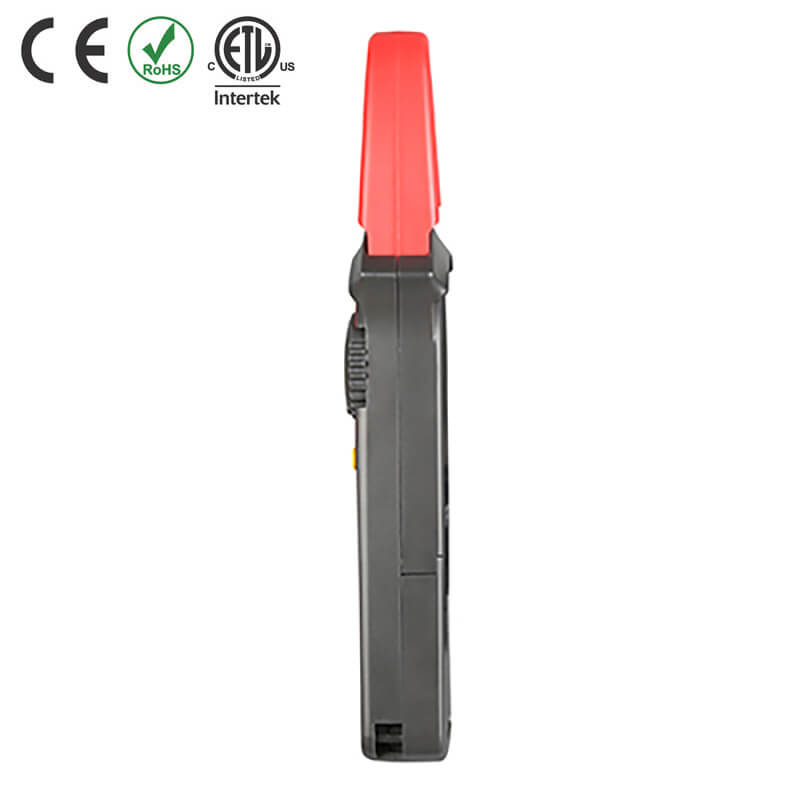

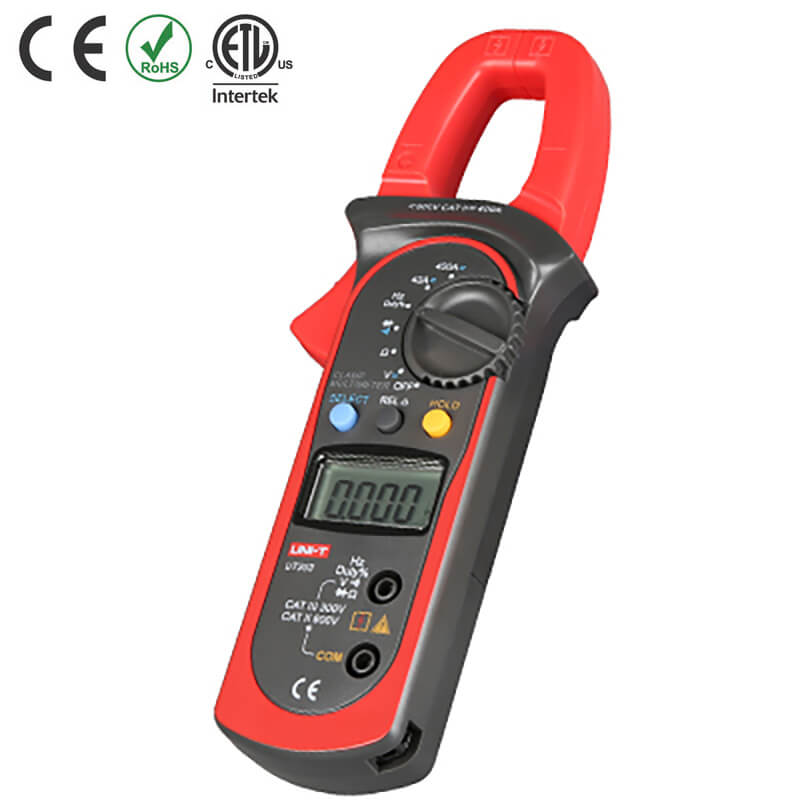

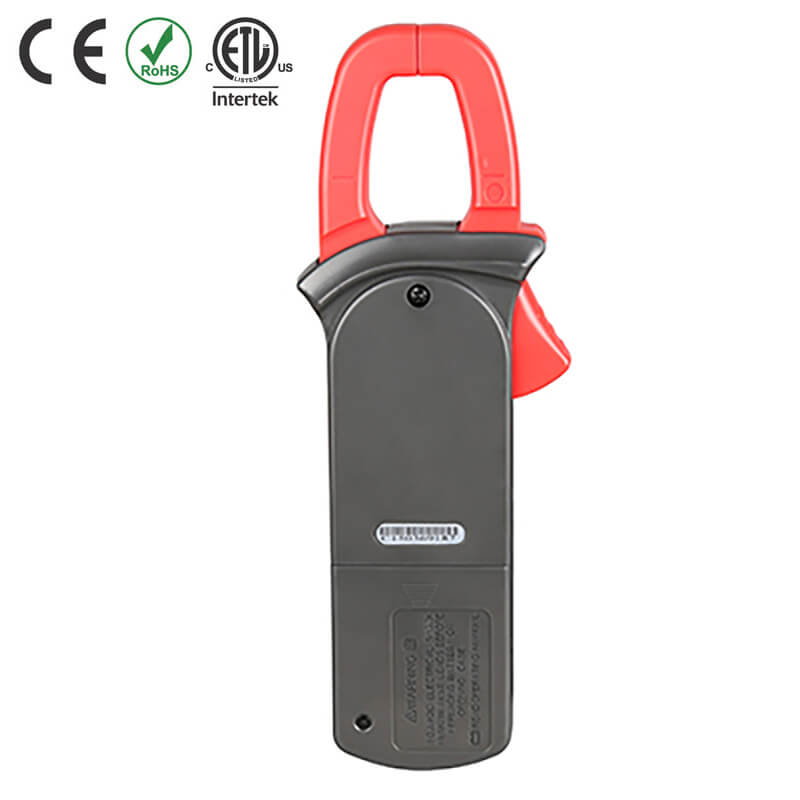

UT203 400-600A Digital Clamp Meter
This series is UNI-T’s entry level digital clamp meter. It is a great choice for measuring residential and commercial power wires. UT202 and UT204A come with point contact temperature probe, perfect for working in HVAC.
৳ 4,305.00 ৳ 4,850.00
| Specifications | Range | UT203 |
| AC current (A) | 400A | ±(2.5%+5) |
| DC current (A) | 400A |  ±(2%+3) |
| AC voltage (V) | 600V | ±(1%+5) |
| DC voltage (V) | 600V | ±(0.8%+1) |
| Resistance (Ω) | 40MΩ | ±(1%+2) |
| Capacitance (F) | 100μF | |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+3) |
| Display count | 4000 | |
| Auto range | √ | |
| General Characterisitics | ||
| Power | 9V battery (6F22) | |
| Display | 35.6mm x 18mm | |
| Product color | Red and grey | |
| Product net weight | 260g | |
| Product size | 208mm x 76mm x 30mm | |
| Standard accessories | Batteries, test leads, carrying bag | |
| Standard individual packing | Gift box, English manual | |
| Standard quantity per carton | 48pcs | |
| Standard carton measurement | 485mm x 320mm x 385mm | |
| Standard carton gross weight | 16.5kg | |
