UNI-T Digital Multimeter Price In BD
Showing all 6 results
-
Best Selling Products, Digital Multimeters, Meters
UT117C High-precision True RMS Digital Multimeter UNI-T
Best Selling Products, Digital Multimeters, MetersUT117C High-precision True RMS Digital Multimeter UNI-T
Specifications
Model UT117C AC voltage 600.00mV/6.0000V/60.000V/600.00V ±(1%＋30) AC current 6.0000A/10.000A ±(1.5%+30) DC voltage 600.00mV/6.0000V/60.000V/600.00V ±(0.3%+10) DC current 6.0000A/10.000A ±(0.5%+10) Auto-V Loz 600.0V ±(1%+3) LPF voltage (ACV) 600.0V ±(2%+3) Frequency 99.99Hz/999.9Hz/9.999KHz/50.00KHz ±(0.01%+3) Resistance 600.00Ω~6.0000MΩ ±(0.5%+5) 40.000MΩ ±(3%+5) Capacitance 1000nF/10.00uF/100.0uF ±(1.9%+5) 1000uF/10000uF ±(2.5%+5) Main Features Display count 60000 External current clamp Ratio: 1mV/A √ Continuity & Diode √ NCV √ Data Hold √ Manual/Auto range √ Max/Min √ Relative mode √ High voltage warning √ Auditable & VI suable indication √ Low battery indication √ Auto Power Off Around 15 minutes √ LCD backlight Auto power off after 5 minutes √ Bluetooth √ Drop Test 2m √ Overvoltage category CATIII 600V General Characteristics Power supply 1.5V AAA * 3 Product Color Red + Grey Product Weight Around 346g Product Dimension 169x 84x 48.8mm Accessories Test probe*1 pair, Battery, Magnetic strap*1 pcs, User manual*1 pcs Package quantity 10 pcs / package Package Size TBD Gross Weight TBD SKU: n/a -
Best Selling Products, Digital Multimeters, Meters
UT15B Max True RMS Digital Multimeters UNI-T
Specifications
Technical Specifications UT15B MAX Certificates CE, UKCA, cETLus, REACH, RoHS Voltage (DC) 600.0mV/6.000V/60.00V/600.0V/1000V ±(0.4%+3) Voltage (AC) 600.0mV/6.000V/60.00V/600.0V/1000V ±(0.5%+5) VFD (Voltage) 600.0V ±(8%) Current (AC) 600.0µA/6000µA
/60.00mA/600.0mA/6.000A/10.00A±(1.2%+3) Current (DC) 600.0µA/6000µA
/60.00mA/600.0mA/6.000A/10.00A±(1.2%+3) Resistance 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ ±(0.5%+2) Capacitance 6.000nF/60.00nF~600.0µF/6000µF ±(2.0%+5) Frequency(Hz) 10Hz~10MHz ±(0.1%+3) Duty cycle 1%~99.9% ±(1.0%+4) Temperature(℃/℉) -55℃~500℃/–67°F~932°F – Main features Display count 6000 Continuity / Diode √ Data hold √ MAX/MIN √ Relative mode √ Backlight (adjustable) √ Auto range/Manual range √ Auto power off √ Low battery indication √ Audible & Visual alarm √ LED test – Mis-plug alarm √ Any-key wake up √ Overvoltage category CATⅢ 600V General Characteristics Power supply 2*1.5V AA Product color 426U+1797C Product weight 455g Product dimension 182mm*91mm*45mm Accessories 1pcs User manual, 2 pair Test lead(normal gold plated probe & Fine-tipped probe),1pcs K-type thermocouple (UT17B/UT18B MAX only), 2pcs battery, Magnetic hanger(optional) SPQ 10 pcs Package dimension 480×370×195mm Standard package gross weight Around 9kg SKU: n/a -
Best Selling Products, Digital Multimeters, Meters
UT171A Industrial True RMS Digital Multimeter UNI-T
Best Selling Products, Digital Multimeters, MetersUT171A Industrial True RMS Digital Multimeter UNI-T
Specifications
Specifications Range UT171A DC voltage (V) 1000V ±(0.025%+5) AC voltage (V) 1000V ±(0.4%+40) DC current (A) 10A ±(0.15%＋2) AC current (A) 10A ±(0.75%＋5) Resistance (Ω) 40MΩ ±(0.05%+2) 60MΩ Admittance (nS) 60nS Capacitance (F) 40mF ±(2.5%+40) 60mF Frequency (Hz) 10Hz~10MHz ±(0.01%+5) Temperature (°C) -40°C~1000°C Temperature (°F) -40°F~1832°F Features Display count 40000 Auto/Manual range √ True RMS √ Bandwidth (Hz) 100kHz √ 4~20mA loop 0~100% LoZ (ACV) Around 3kΩ Diode Around 3V √ Continuity buzzer √ Duty cycle 0.1%~99.9% √ NCV/Data hold/MAX/MIN √ Relative mode √ Data storage 1000 Display type LCD Analog bar graph 31 LCD backlight √ Mis-plug alarm √ Low battery indication √ Auto power off √ Input protection √ Input impedance for DCV √ Input impedance for DCV Around 1GΩ √ General Characteristics Power 1.5V battery (R03) x 6 Display 70.6mm x 49.5mm Product color Red and grey Product net weight 384g Product size 206mm x 95mm x 55mm Standard accessories Batteries, test leads, point contact temperature probe,
USB interface cable, PC software CDStandard individual packing Gift box, carrying bag, English manual Standard quantity per carton 5pcs Standard carton measurement 390mm x 310mm x 205mm (0.55CBM per standard carton) Standard carton gross weight 5.6kg Optional accessory Bluetooth adaptor (UT-D07) SKU: n/a -
Best Selling Products, Digital Multimeters, Meters

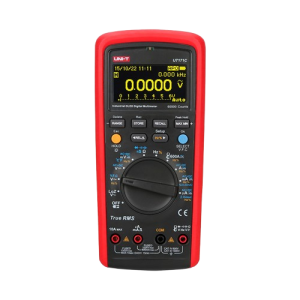

UT171C Series Industrial True RMS Digital Multimeters UNI-T
Best Selling Products, Digital Multimeters, MetersUT171C Series Industrial True RMS Digital Multimeters UNI-T
Specifications
Specifications Range UT171C DC voltage (V) 1000V ±(0.025%+5) AC voltage (V) 1000V ±(0.4%+40) DC current (A) 10A ±(0.15%＋2) AC current (A) 10A ±(0.75%＋5) Resistance (Ω) 40MΩ 60MΩ ±(0.05%＋2) Admittance (nS) 60nS ±(1%＋10) Capacitance (F) 40mF 60mF ±(2.5%+40) Frequency (Hz) 10Hz~10MHz ±(0.01%+5) Temperature (°C) -40°C~1000°C ±(1%+30) Temperature (°F) -40°F~1832°F ±(1.5%+50) Features Display count 60000 Auto/Manual range √ True RMS Bandwidth (Hz) 100kHz √ 4~20mA loop 0~100% √ LoZ (ACV) Around 3kΩ √ Diode Around 3V √ Continuity buzzer √ Duty cycle 0.1%~99.9% √ NCV/Data hold/MAX/MIN √ Relative mode √ Data storage 9999 Display type OLED Analog bar graph 31 LCD backlight √ Mis-plug alarm √ Low battery indication √ Auto power off √ Input protection √ Input impedance for DCV √ Input impedance for DCV Around 1GΩ √ General Characteristics Power 7.4V 2000mAh Li-ion battery Display 70.6mm x 35.3mm Product color Red and grey Product net weight 384g Product size 206mm x 95mm x 55mm Standard accessories Batteries, test leads, point contact temperature probe,
USB interface cable, power adaptor (UT171B/C), PC software CDStandard individual packing Gift box, carrying bag, English manual Standard quantity per carton 5pcs Standard carton measurement 390mm x 310mm x 205mm (0.55CBM per standard carton) Standard carton gross weight 5.6kg Optional accessory Bluetooth adaptor (UT-D07) SKU: n/a -
Best Selling Products, Digital Multimeters, Meters
UT18B Max True RMS Digital Multimeters UNI-T
Specifications
Technical Specifications UT18B MAX Certificates CE, UKCA, cETLus, REACH, RoHS Voltage (DC) 600.0mV/6.000V/60.00V/600.0V/1000V ±(0.4%+3) Voltage (AC) 600.0mV/6.000V/60.00V/600.0V/1000V ±(0.5%+5) VFD (Voltage) 600.0V ±(8%) Current (AC) 600.0µA/6000µA
/60.00mA/600.0mA/6.000A/10.00A±(1.2%+3) Current (DC) 600.0µA/6000µA
/60.00mA/600.0mA/6.000A/10.00A±(1.2%+3) Resistance 600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ ±(0.5%+2) Capacitance 6.000nF/60.00nF~600.0µF/6000µF ±(2.0%+5) Frequency(Hz) 10Hz~10MHz ±(0.1%+3) Duty cycle 1%~99.9% ±(1.0%+4) Temperature(℃/℉) -55℃~500℃/–67°F~932°F ±2℃/±4℉ Main features Display count 6000 Continuity / Diode √ Data hold √ MAX/MIN – Relative mode √ Backlight (adjustable) √ Auto range/Manual range √ Auto power off √ Low battery indication √ Audible & Visual alarm √ LED test √ Mis-plug alarm √ Any-key wake up √ Overvoltage category CATⅢ 600V General Characteristics Power supply 2*1.5V AA Product color 426U+1797C Product weight 455g Product dimension 182mm*91mm*45mm Accessories 1pcs User manual, 2 pair Test lead(normal gold plated probe & Fine-tipped probe),1pcs K-type thermocouple (UT17B/UT18B MAX only), 2pcs battery, Magnetic hanger(optional) SPQ 10 pcs Package dimension 480×370×195mm Standard package gross weight Around 9kg SKU: n/a -
Best Selling Products, Digital Multimeters, Meters

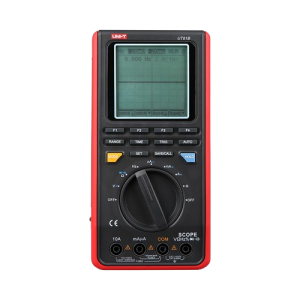

UT81B Scope Digital Multimeter UNI-T
Specifications
Specifications Range UT81B DMM Specifications DC voltage (V) 1000V ±(0.8%+8) AC voltage (V) 750V ±(1%+15) DC current (A) 10A ±(1%+8) AC current (A) 10A ±(1.5%+8) Resistance (Ω) 40MΩ ±(1%+5) Capacitance (F) 100μF ±(3%+8) Frequency (Hz) 10Hz~10MHz ±(0.1%+3) Scope Specifications Bandwidth 8MHz Sampling rate 40MS/s Vertical accuracy ±(5%+1) Vertical sensitivity 20mV/div~500V/div (1-2-5) √ Time-base accuracy ±(0.01%+1) Time-base range UT81B: 100ns/div -5s/div (1-2-5)
UT81C: 50ns/div – 5s/div(1-2-5)Features Display count 4000 Auto range √ Duty cycle 0.1~99.9% √ Diode √ Auto power off √ Continuity buzzer √ Display 160 x 160 monochrome √ Trigger types Auto run/Normal/Single shot √ Memory 10 screens and setups √ Contrast and brightness setup √ Low battery indication √ USB interface √ LCD backlight √ Input impedance for DCV Around 10MΩ √ General Characteristics Power 1.5V battery (R6) x 4 Display 60mm x 60mm Product color Red and grey Product net weight 498g Product size 200mm x 100mm x 48mm Standard accessories Batteries, test lead, alligator clip, USB interface cable, PC software CD Standard individual packing Gift box, English manual Standard quantity per carton 12pcs Standard carton measurement 485mm x 450mm x 260mm (0.057CBM per standard carton) Standard carton gross weight UT81B: 23kg; UT81C: 16.4kg Optional accessories Scope probe, AC power adaptor SKU: n/a
