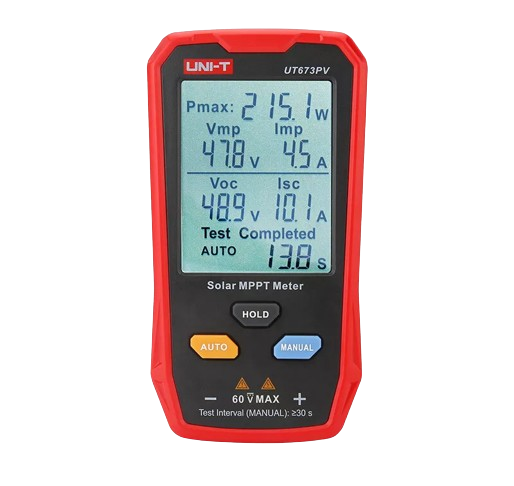

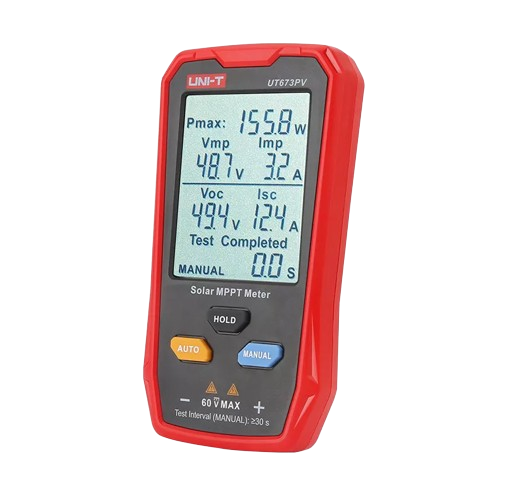

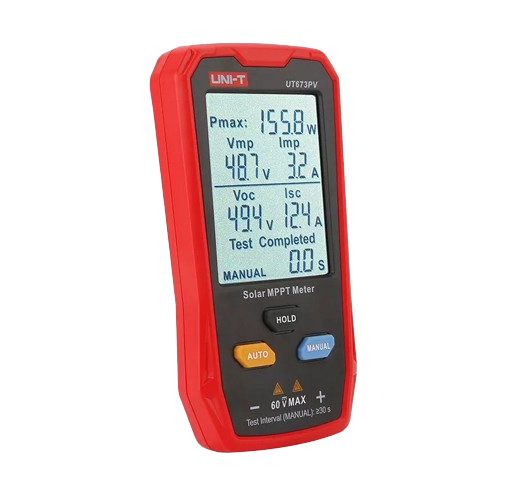

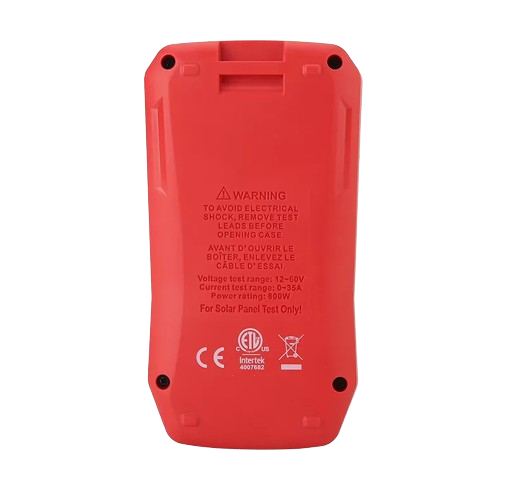

UT673PV Solar MPPT Meter Handheld Automatic Measurement Solar Detector UNI-T
Specification |
||
| Max power measurement | 5～800W | ±(1.0%＋10) |
| Max power current(DC) | 0～35A | ±(1.5%＋5) |
| Max power voltage(DC) | 12～60V | ±(1.5%＋5) |
| Open circuit current(DC) | 12～60V | ±(1.5%＋5) |
| Short circuit current(DC) | 0～35A | ±(1.5%＋5) |
| General Features | ||
| Display | Large LCD (52 * 66mm) | |
| Reverse polarity connect Protection |
√ | |
| Over voltage protection | √ | |
| Over current protection | √ | |
| Over temperature protection | √ | |
| Over power protection | √ | |
| Manual/Auto MPPT test | √ | |
| Data hold | √ | |
| Power supply | No battery needed, powered by solar panel | |
| Ovecategory | CAT 0 60V | |
| Certificate | CE, cETLus, RoHS | |
৳ 14,500.00 ৳ 18,900.00
Applications:
● Manufacturer of solar panels.
● Distributor for solar panels.
● Solar panel installer.
● User of the solar panel.
● Fans with solar panels.
Features:
● Auto MPPT detection.
● Manual MPPT detection.
● Overvoltage, over temperature, over current protection.
● Reverse polarity protection for solar panels.
● Overload protection.
● No additional power supply is required.
Specifications:
Name: Solar panel multimeter
Model: UT673PV.
Power: 5-800 W.
Voltage: 12-60V
Current: 0-60 A.
Power supply mode: solar panel power supply
